LASER CLEANING MACHINE

2000W CONTINOUS LASER CLEANING MACHINE



HIGH ENERGY OUTPUT

STABLE WORKING STATE


CONTINUOUS OUTPUT TIME

USER-FRIENDLY - Portable design adapt to different complex working environment. HIGH POWER - Removes oxide layer, thick paint, and ship rust easily.

ENVIRONMENT FRIENDLY - No consumables. Low operation cost, no easy-brake parts, saving manpower and material resources.

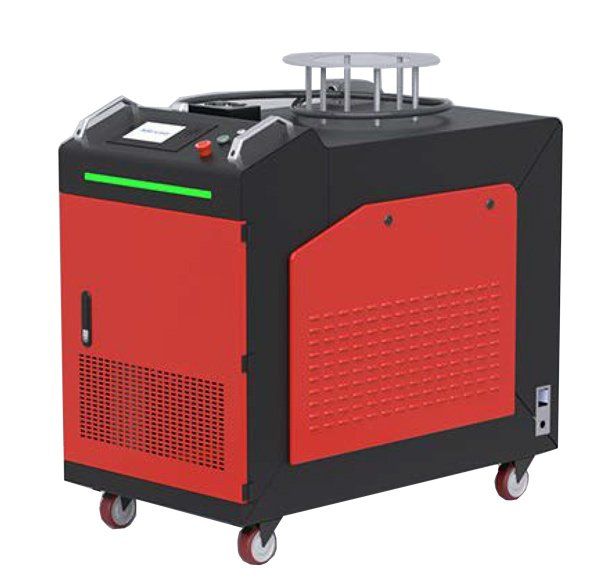

2000W Continuous Laser Cleaning Machine


Laser cleaning is an environmentally friendly laser ablation or photoablation process that in some situations can replace chemical or mechanical cleaning methods. A laser cleaning machine irradiates and heats the surface material of the object with a CW (Continuous Wave) laser or pulsed laser and make it evaporate contaminants from the surface of the substrate. Laser cleaning machines are mainly used for rust removal from metal surfaces, paint removal, plating removal, coating removal, oil, stain, dirt cleaning, and rubber mold residue cleaning.


Handheld Fiber Laser Cleaning Machine Features:

  • Non-contact cleaning does not damage the substrate.
  • Precise cleaning, can achieve precise location, precise size selective cleaning.
  • No chemical cleaning fluid, no consumables, safe and environmentally friendly.
  • The operation is simple, just power on, and it can be hand-held or cooperated with a manipulator to realize automatic cleaning.
  • The cleaning efficiency is very high.
  • The portable laser cleaning system is stable, minimal maintenance


Applications:

  • Rust removal from metal surface.
  • Paint removal from metal surface.
  • Clad layer and coating removal.
  • Oil fouling, blot, and dirt cleaning.
  • Metal weld discoloration removal.
  • Stone surface cleaning.
  • Rubber mold damage-free cleaning

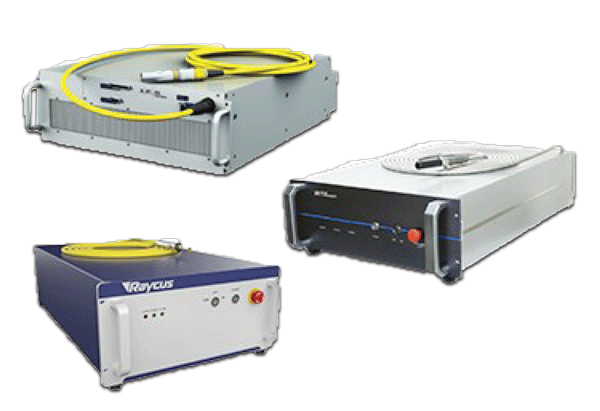

QUALIFIED COMPONENTS, STABLE QUALITY -

IPG, MAX AND RAYCUS ETC.


Laser source are applied to make sure stable performance and reliable quality of the machine.


Model: CLS-FL-C2000C
Clean Head Weight 1.1KG -2.5KG
Touch Screen 148*253mm / 169*282mm
Cooling Method Water Cooling
Working Temperature 0°C - 40°C
Storage Temperature -10°C - 60°C
Machine size 1160*1158*674mm
Laser Wave Length Fiber Laser 1064mm
Optional Accessory Hand-held / Automated
Scan Width 80mm / 100mm / 200mm
Operating Humidity 10% to 85%
Machine Weight 220 ± 5kg
Cable Length 10m / 15m
Peak Power Consumption 15KW
Focal Length F=254mm / F=300mm / F=500mm (customizable)
Input Power Single-phase 220V / Three-phase 380V AC. 30A
