Ceramic, Tungsten & Boron Inserts

1-Series Nozzle Inserts (Tapered)

1-Series Nozzle Inserts (Tapered)

1-1/8” O.D. at base.




C1 T109 TC1 BS BM
Stock # Stock # Stock # Stock # Stock #
CERAMIC TUNGSTEN TUNGSTEN BORON BORON
3-3/4” Long 1-3/4” Long 3-3/4” Long 2-1/8” Long 4” Long Bore Size
36911 31091 ----- ----- ----- 3/32”
36912 31092 34020 35922 35922-4 1/8”
36913 31093 34030 35923 35923-4 3/16”
36914 31094 34032 35924 35924-4 1/4”
36915 31095 34050 35925 5/16”
36916 31096 34060 ----- ----- 3/8”

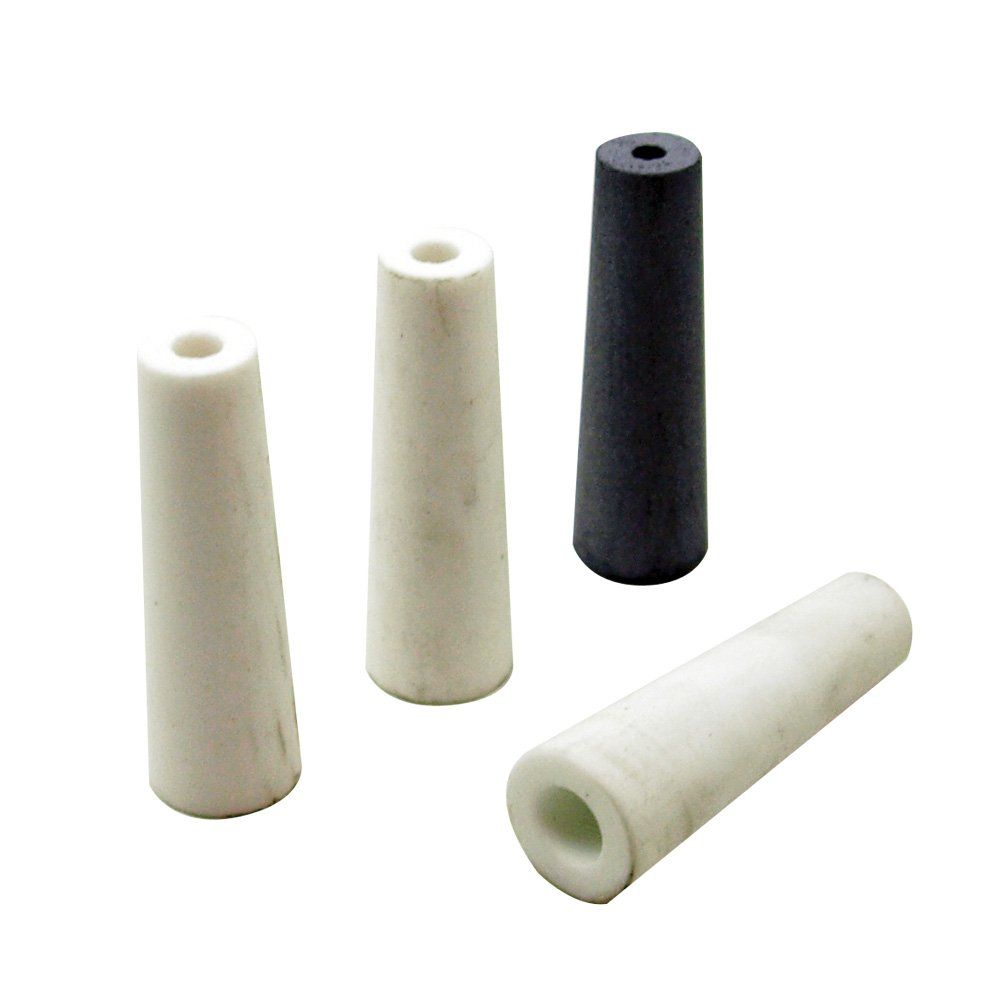

T145/T190 Series Angle Nozzles

2-Series Nozzle Inserts (Tapered)

7/16” O.D. at base, 1-5/16”


C2 (Ceramic) TL2 (Tungsten) RL2 (Roctec)
Stock# Stock# Stock# Bore Size
36331 34661 34660 3/32”
36332 ----- ----- 7/64”
36432 34662 34659 1/8”
36532 ----- ----- 5/32”

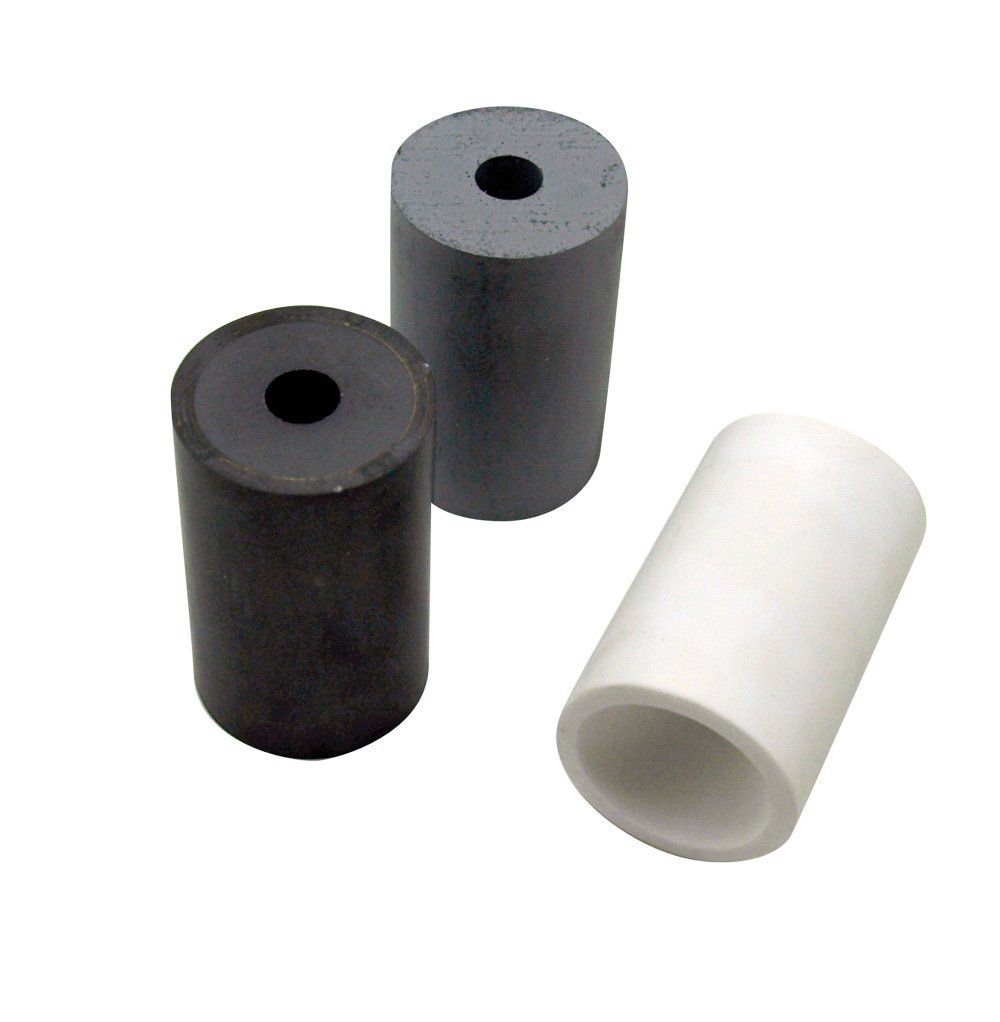

166-Series Nozzle Inserts (Cylindrical)

166-Series Nozzle Inserts (Cylindrical)

7/8” O.D



Ceramic (CL) Tungsten (TL) Boron (B7)
Stock# Stock# Stock# Bore Size
36664 34664 35934 1/4”
36665 34665 35935 5/16”
36666 34666 35936 3/8”

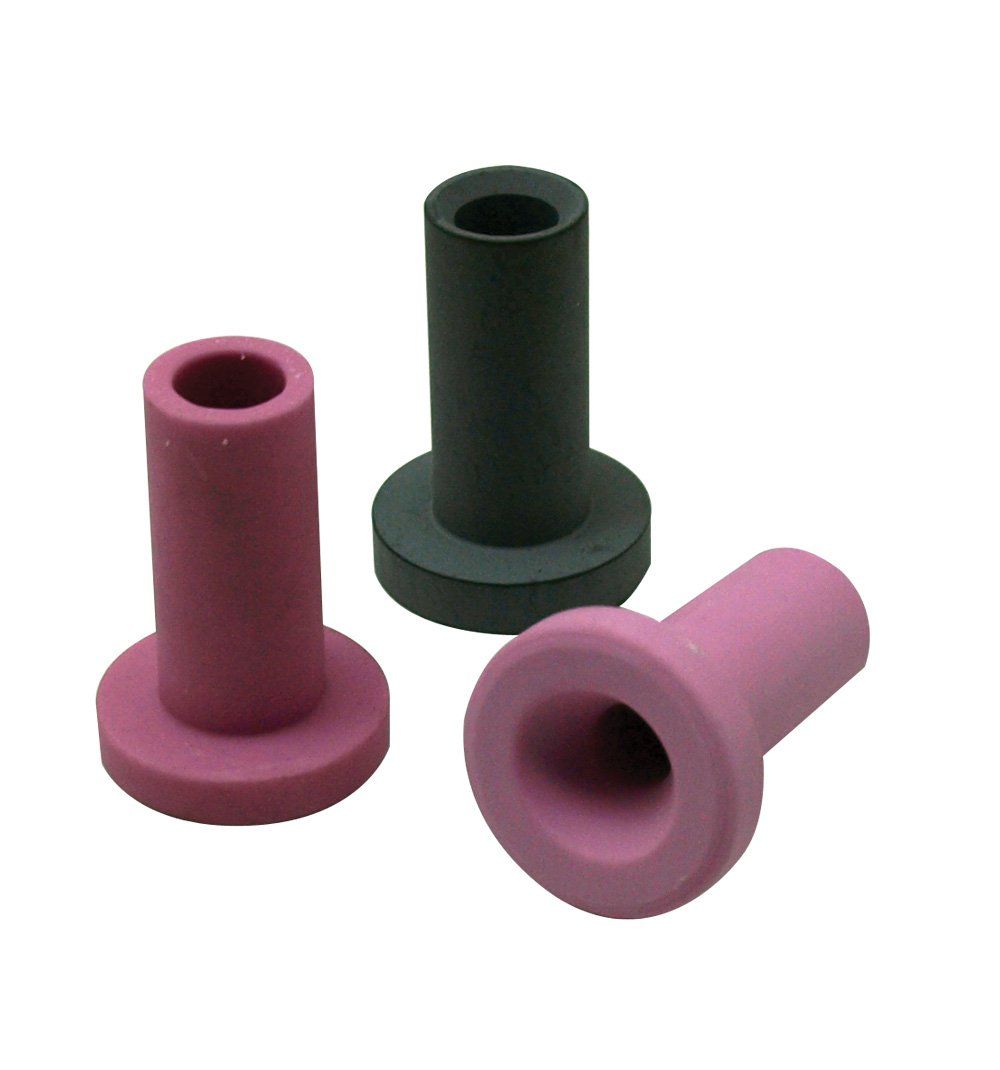

197-Series Nozzle Inserts (Flanged)

197-Series Nozzle Inserts (Flanged)

For use with Empire gun assemblies.

7/8” O.D. at flange, 31/64” at tip.


Ceramic (CL) Tungsten (TL)
Stock# Stock# Bore Size
36974 34974 1/4”
36975 34975 5/16”

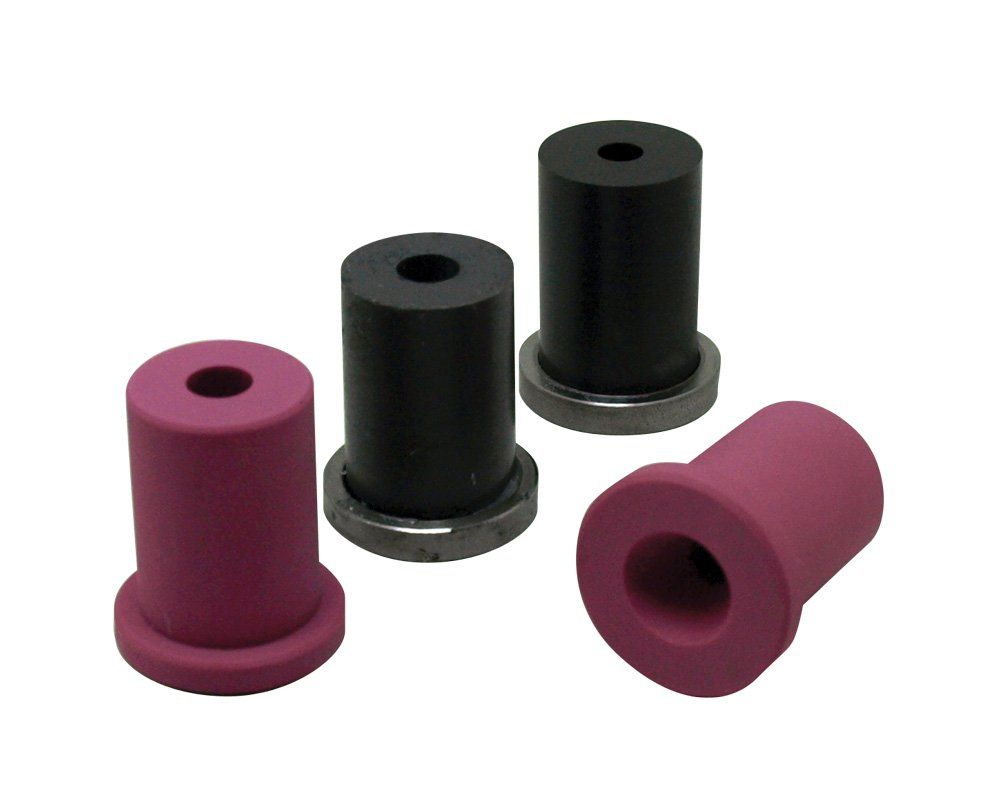

198-Series Nozzle Inserts (Flanged)

198-Series Nozzle Inserts (Flanged)

For use with Empire gun assemblies.

1-1/8” O.D. at flange, 7/8” at tip.


Ceramic (CL) Tungsten (TL) Boron
Stock# Stock# Stock# Bore Size
36984 34984 35984 1/4”
36985 34985 35985 5/16”
36986 34986 35986 3/8”
36987 ----- ----- 7/16”
