Suction Guns
BLAST CABINET SUCTION GUNS

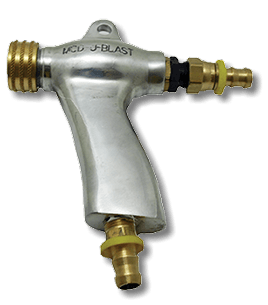

The Mod-U-Blast® gun is unequalled in performance, durability,and versatility. An assortment of sizes and liner compositions tailor nozzles to specific applications.
Nozzle materials are available to handle the entire range of abrasive requirements. Pistol grip design makes the gun easy to handle, foot valve operated, and found in a wide variety of blast cabinets.
Uses CL166 Ceramic Nozzles.
| STOCK # | DESCRIPTION |
|---|---|
| 12300 | Gun Assembly # 3.5, Ceramic |
| 12301 | Gun Assembly # 4, Ceramic |
| 12301T | Gun Assembly # 4, Tungsten Carbide |
| 12302 | Gun Assembly # 5, Ceramic |
| 12302T | Gun Assembly # 5, Tungsten Carbide |
| 12302B | Gun Assembly # 5, Boron Carbide |
| 12303 | Gun Assembly # 6, Ceramic |
| 12303T | Gun Assembly # 6, Tungsten Carbide |
| 12303B | Gun Assembly # 6, Boron Carbide |
| 12304 | Gun Assembly # 7, Ceramic |
| STOCK # | DESCRIPTION |
|---|---|
| 11802 | Gun body only |
| 11723 | Brass fitting, air inlet |
| 11724 | Brass fitting, media inlet |
| 11913 | Air-jet lock nut, brass |
| 11914 | Nozzle retaining nut, brass |
| 12341 | 3/32", #3.5 air-jet, c/w sleeve |
| 12342 | 1/8", #4 air jet, c/w sleeve 6 |
| 12343 | 5/32", #5 air-jet, c/w sleeve |
| 12344 | 3/16", #6 air-jet, c/w sleeve |
| 12345 | 7/32", #7 air-jet, c/w sleeve |
| 12346 | 1/4", #8 air-jet, c/w sleeve |
| 12097 | Air-jet rubber sleeve |
| 12031 | Nozzle "O" ring 10 |
| 12 Med | 1/2" self-locking media hose, clear, per foot |
| 12 Push | 1/2" self-locking push-on Air line, black, per foot |
