Dry – Film Thickness Gauges
DRY FILM THICKNESS GAUGES
PosiPen® Gauge
Measures non-magnetic coatings such as, paint, enamel, plating, hot dip galvanizing on steel.
Ideal for measuring on small, hot or hard-to-reach surfaces. Dual scale in mils and microns.
Accuracy: +/- 10%
Range: .25 to 20 mils (5 to 500 microns)
Size: 5.5” Long
Stock # 20194A (Standard PosiPen)
Stock #
20194B (High Temp. PosiPen)

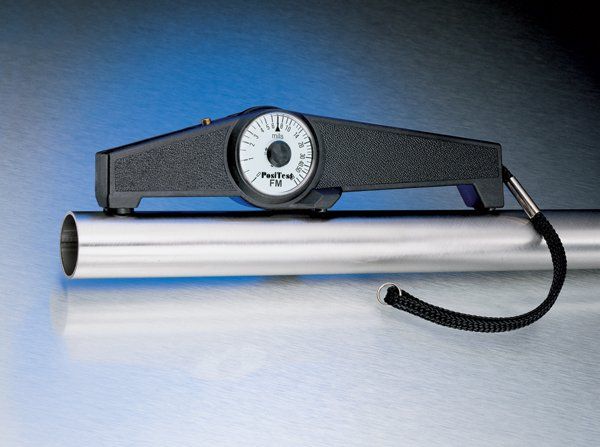

Positest® FM-DFT Gauge
For the non-destructive measurement of nonmagnetic coatings (such as paint, enamel, plastic, galvanizing, metalizing, plating, etc.)
on steel. Calibration Record c/w factory.
Stock # 20196FM (Positest FM Manual (0-80 mils)
Stock # 20196GM (Positest GM Gauge (0.8 mils)
Mikrotest Ergo-Manual And Automatic Series
Mikrotest-Ergo Manual Gauges are for measurement of protective coatings over ferrous substrates. Requires manual operation of dial to determine a reading.
Accuracy: +/- 5%
Size: 8.25” x 2” x 1.25”
Complete with hard-case
Conforms to all national and international standards.
Stock # 20189 (FM-mikrotest Manual-type 0 to 40 mils w/ case)
Stock #
20189A (GM-mikrotest Manual-type 0 to 4 mils)
Stock #
20190 (FM-IV mikrotest Auto 0 to 40 mils - w/ case)
Stock #
20190A (Auto 0 to 4 mils - w/ case)
Stock #
20190B (Auto 8 to 120 mils - w/ case)
Stock #
20190C (Auto 20 to 200 mils - w/ case)

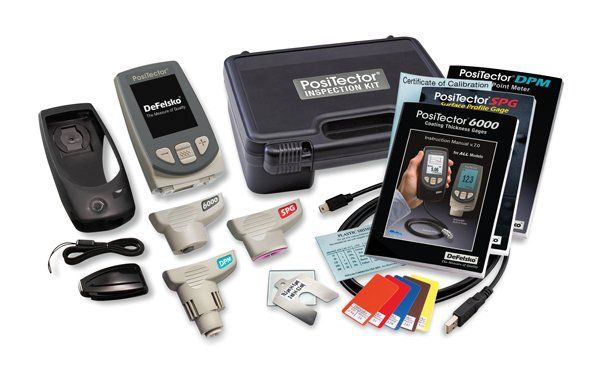

Dry – Film Thickness (Digital)PosiTestor® Inspection Kit
Each Inspection Kit contains:
- PosiTector® Gage Body - standard or advanced
- PosiTector® 6000 Coating Thickness Probe - select from a variety of measurement ranges and probe styles
- PosiTector® DPM Environmental Probe
- PosiTector® SPG Surface Profile Probe
Stock # 20196-6KITFS1 (Inspection kit for positector 6FS1)
Stock # 20196-6KITFS3 (Inspection kit for positector 6FS3)

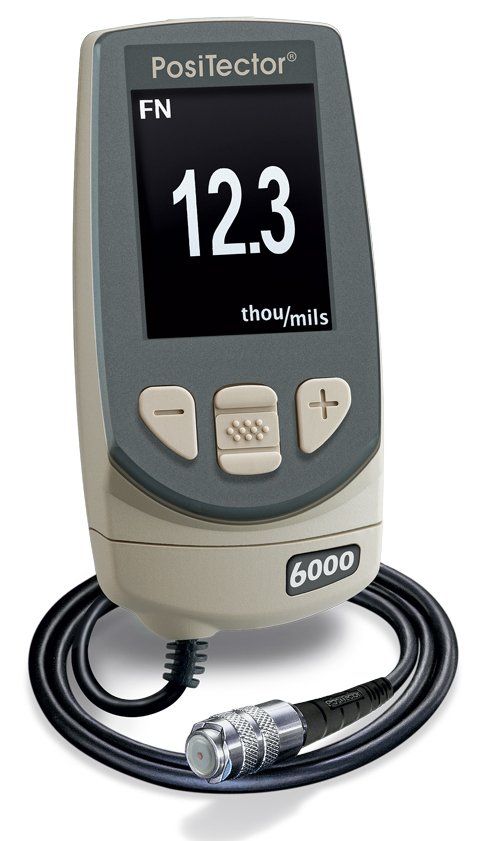

PosiTector® 6000 Gauge
The PosiTector® 6000 is ideal for measuring the thickness of non-magnetic coatings on ferrous metals and non-conductive coatings on non-ferrous metals. There are 52 models available to cover a wide variety of coating thickness measurement needs.
ALL GAUGES COME COMPLETE with precision plastic shim(s), protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, instructions, convenient carrying case, protective lens shield, Long Form Certificate of Calibration traceable to NIST or PTB, USB cable, two (2) year warranty.
Stock #
20196-6F1
(Positector 6000-F1 0-60mil ferrous - standard gauge w/ removable F probe)
Stock # 20196-6FS1 (Positector 6000-FS1 0-60mil ferrous - standard gauge w/ removable FS probe)
Stock #
20196-6FS3
(Positector 6000-FS3 0-60mil ferrous - advanced gauge w/ removable FS probe)
Stock #
20196- 6FTS1 (Positector 6000-FS1 0-250mil ferrous - standard gauge w/ removable FTS probe)
Stock #
20196- 6FTS3 (Positector 6000-FS1 0-250mil ferrous - advanced gauge w/ removable FTS probe)
Stock #
20196-6FNS1 (Positector 6000-FNS1 0-60mil combo - standard guage w/ removable FNS probe)
Stock #
20196-FNS3
(Positector 6000 FNS3 0-60mil combo - advanced gauge w/ removable FNS probe)
Stock #
20196-6FN1
(Positector 6000 FN1 0-60mil combo - standard gauge w/ removable FN probe)
Stock #
20196-6FN3
(Positector 6000 FN3 0-60mil combo - advanced gauge w/ removable FN probe)
Stock #
20196-6NTS1 (Positector 6000 FNTS1 0-250mil combo - standard gauge w/ removable FNTS probe)
Stock #
20196-6NTS3 (Positector 6000 FNTS3 0-250mil combo - advanced gauge w/ removable FNTS probe)

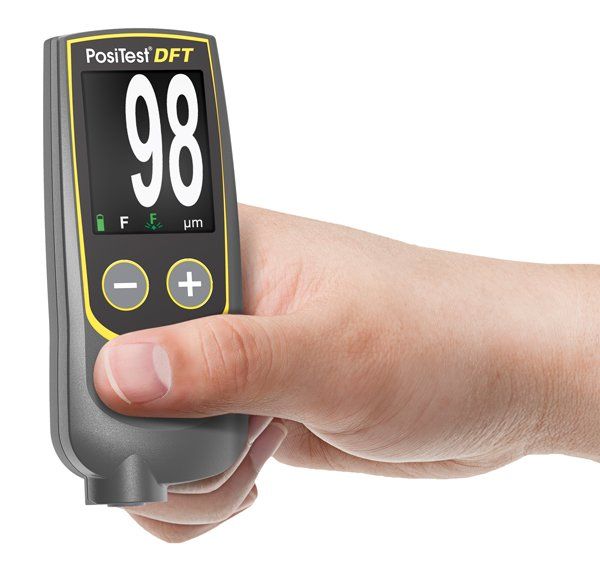

PosiTest® DFT – Gauge
The PosiTest DFT Coating Thickness Gage measures coatings on metal substrates. It is the economical choice that retains the uncompromising quality of DeFelsko coating thickness and inspection instruments.
ALL GAGES COME COMPLETE with wrist strap, precision plastic shims, hard shell storage case, 2 AAA alkaline batteries, instructions, Long Form Certificate of Calibration traceable to PTB, two year warranty
Digital, ferrous, 0 – 40 mils
Stock # 20196-6DFTF-C (Ferrous)
Stock #
20196-6DFTC-C (Combo model - Ferrous / non-ferrous)
